Designated Port, Root Port & Blocking Port

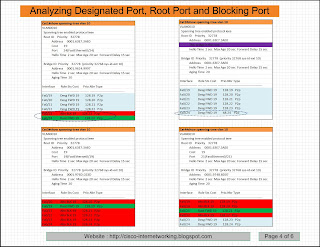

After spending 8 hours, I've done my notes regarding about "Analyzing Designated Port, Root Port & Blocking Port". As usual, I draw nicely with full of colors.

SOLUTION - 1

-----------------

Cat2(config)#int f0/24

Cat2(config-if)#spanning-tree vlan 10 port-priority 48

Cat2(config-if)#end

SOLUTION - 2

------------------

Cat1(config)#int f0/24

Cat1(config-if)#spanning-tree vlan 10 cost 18

cat1(config-if)#end

Best Regards,

Sai Linn Thu
